TO-247封装电阻 100W电阻TR100系列大功率电阻

100W电阻 TO-247超大功率电阻TR100

  100W功率电阻采用TO-2470封装，提供了节省空间的电源设计可应用于高频功率放大器，显示器，开关电源，RF电源放大器，电子电力设备，自动化设备控制，电压管理，UPS电阻，高频无感设计等等。

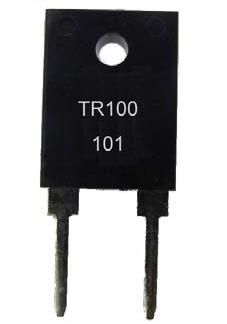

TO-247 Power Resistor- TR100
大功率电阻精度，误差范围Resistance Tolerance
Codes Resistance Tolerance
D ±0.5%
F ±1%
G ±2%
J ±5%
K ±10%
100W电阻，低温度系数TCR
Codes Type
D ±50PPM/℃
E ±100PPM/℃
F ±200PPM/℃
G ±300PPM/℃
典型100W大功率电阻阻值标示Resistance
Codes Type
R100 0.1Ω
0100 10Ω
4700 470Ω
1001 1000Ω
1002 10000Ω
Features:
100 watts at 25°C case temperature heat sink mounted
TO-247 style power package
Single M3 screw mounting to heat sink
Molded case for protection and easy to mount
Electrically isolated case
Non-Inductive design
Applications:
Gate Resistors in Power Supplies
Snubbers
Load and Dumping Resistors in CRT Monitors
Terminal Resistance in RF Power Amplifier
Voltage Regulation
Low Energy Pulse Loading
UPS
  相关20W至100W电阻及各类低阻值电阻，低温度系数电阻资料或疑问，请联系深圳市捷比信科技有限公司！致力于精密电阻发展，优质的产品，专业的服务！欢迎来电，来函索取资料，样品，查货等！
